Description

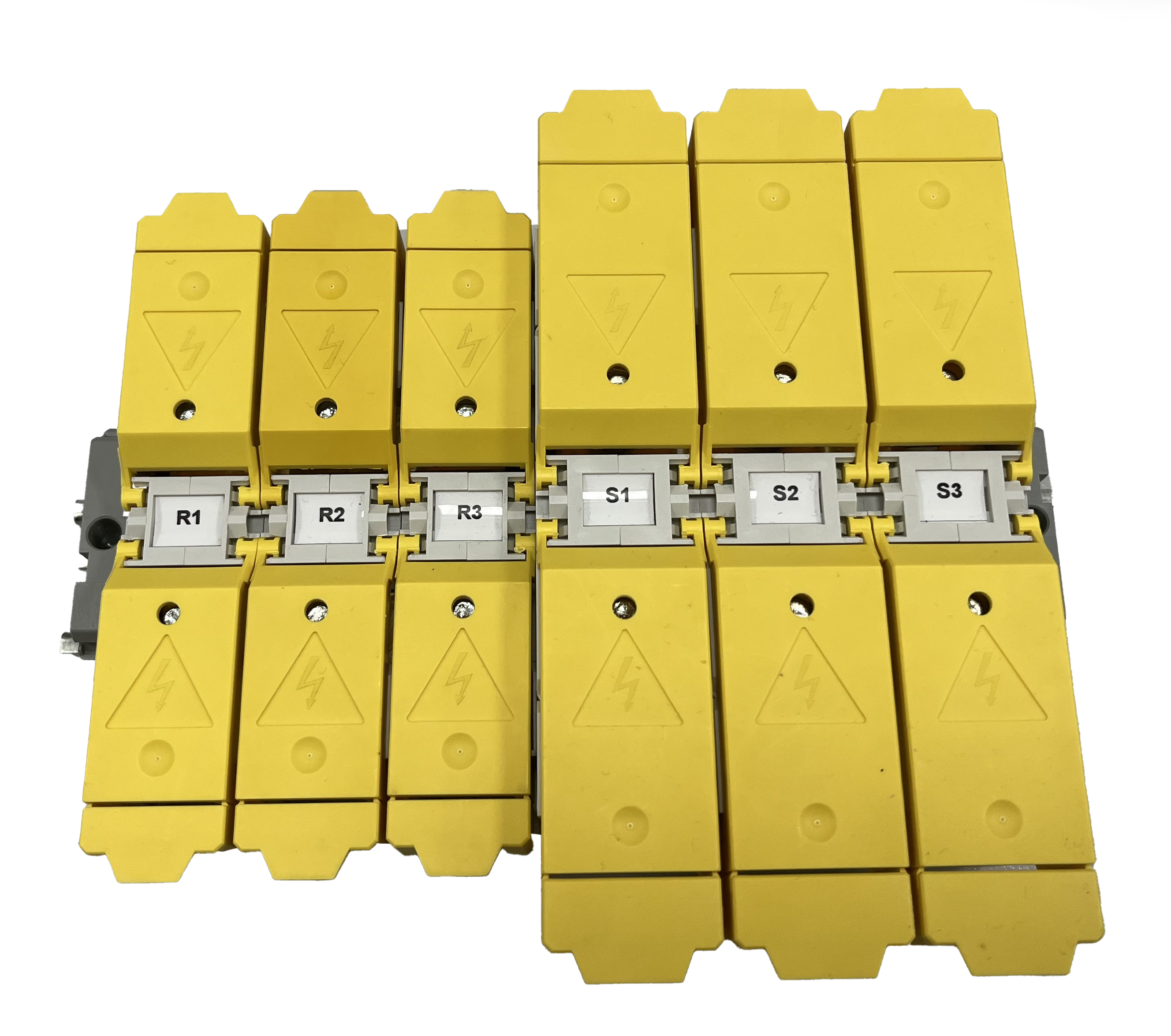

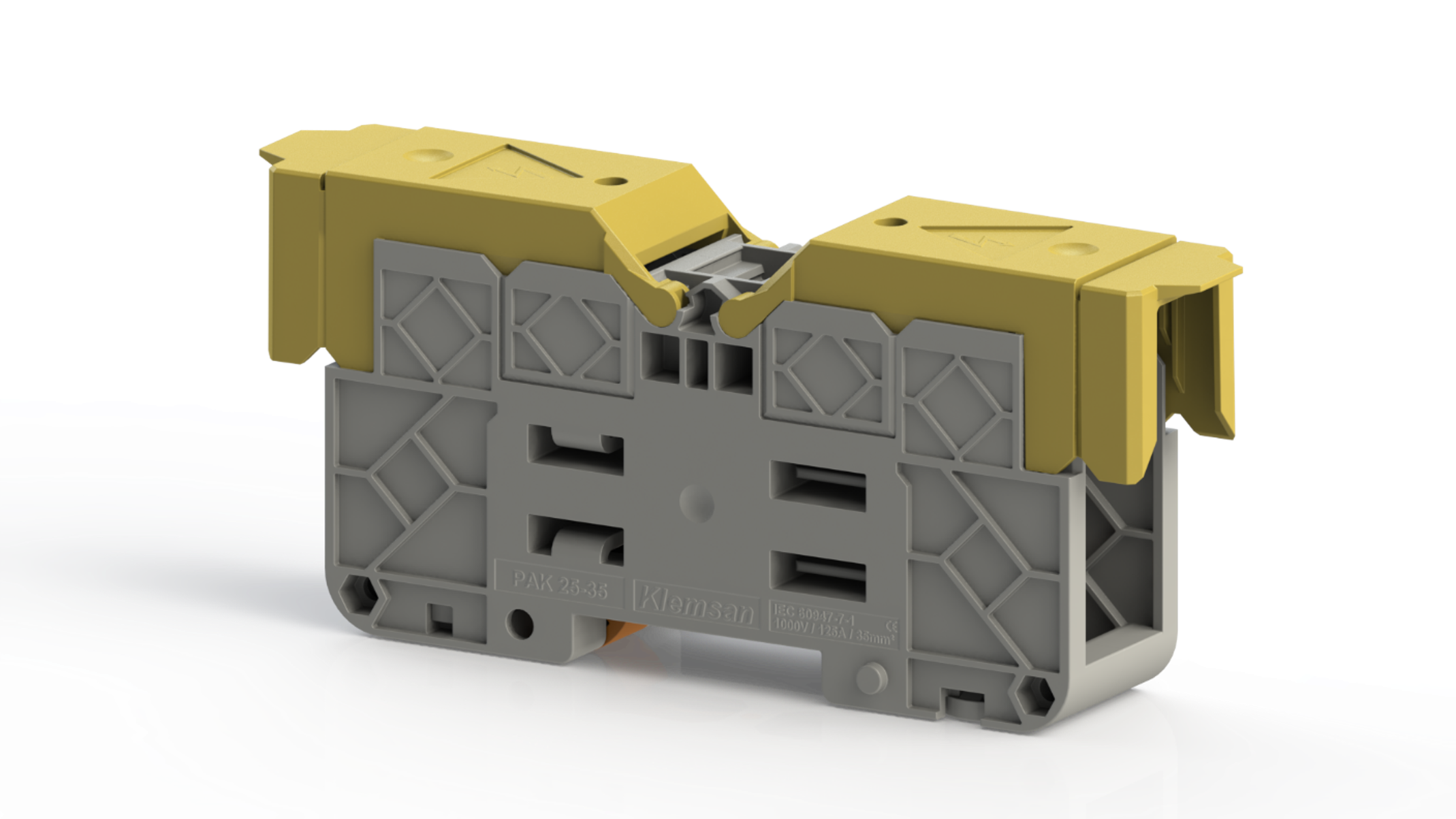

Bolt Connection Terminal Block with Protection Cover
Technical Data
| Description |
Value |
Unit |
| Width/grid dimension |
|
|
| Connection Type 1 |
Bolt connection
|
|
| Colour |
Multi colour
|
|
| Rated voltage |
1000
|
V
|
| Rated current |
125
|
A
|
| Rated Cross Section |
35
|
mm²
|
| Cross section fine-strand with cable end sleeve |
Min:2,5, Max:50
|
mm²
|
| Connection position |
Sideways
|
|
| Number of levels |
1
|
|
| Number of clamp positions per level |
2
|
|
| Mounting method |
DIN rail (top hat rail) 35 mm
|
|
| Insulation Material Type |
Thermoplastic
|
|
| Inflammability class of insulation material acc. to UL94 (n.a.) |
V0
|
|
| Width/grid dimension |
27
|
mm
|
| Height at lowest possible mounting height |
67,50
|
mm
|
| Length |
135
|
mm
|
| Tightening Torque |
Min:3, Max:6
|
Nm
|
| Rated Impulse Voltage |
8
|
kV
|
| Pollution Severity |
3
|
|
