Screw Type Terminal Block

Product Search
MVK 4 BEIGE
MVK 4 BEIGE
MVK 4 BEIGE
MVK 4 BEIGE

MVK 4 BEIGE

Quotation Request

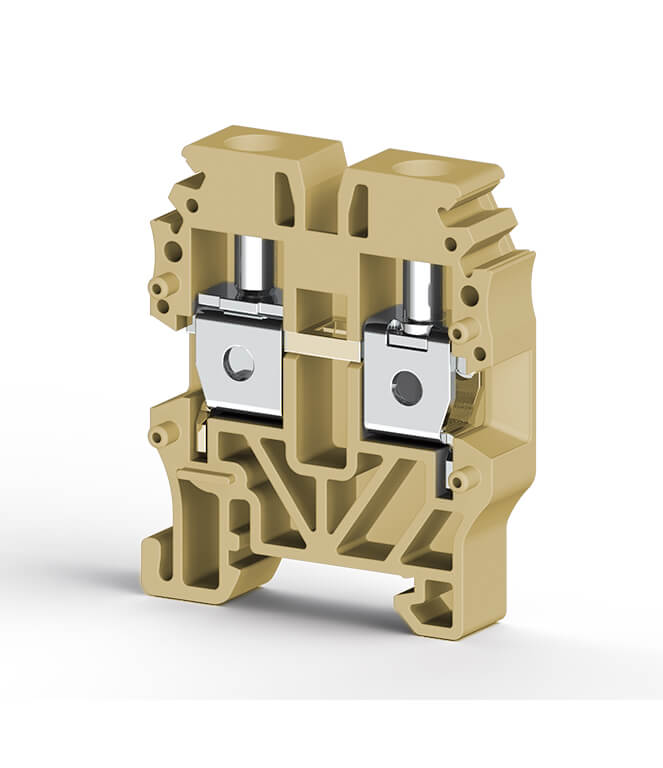

Mini Feed-Through Terminal, Connection type: Screw connection, Colour: Beige, Rated Cross Section: 4 mm2

  • Product ID
    13276
  • ETIM Class
    EC000897
  • Manufacturer
    Klemsan
  • Manufacturer AID
    0.0.0.3.04430
  • Delivery Time
    21 days

Description

Mini Feed-Through Terminal
  • Package Unit
    Piece
  • Quantity per Package
    100
  • Minimum Order Quantity
    1
  • Package Size (mm)
    124(W) x 173(L) x 52(H)
  • Package Weight (gr)
    658

Technical Data

Description Value Unit
Width/grid dimension
Connection Type 1 Screw connection
Colour Beige
Rated voltage 400 V
Rated current 32 A
Rated Cross Section 4 mm²
Cross section solid-core Min:0.2, Max:6 mm²
Width/grid dimension 6 mm
Height at lowest possible mounting height 27 mm
Length 27 mm
IP Protection Class IP-20
VDE - Rated Voltage 400 V
VDE - Rated Current 32 A
UL - Rated Voltage 300 V
UL - Rated Current 30 A
CSA - Rated Voltage 0 V
CSA - Rated Current 0 A
ATEX - Rated Current 0 A

Downloads

Certificates
Title File
CE - MVK-KCUS 66.pdf CE - MVK-KCUS 66.pdf
ATEX - MVK 2,5-4.pdf ATEX - MVK 2,5-4.pdf
UL - AVK - MYK - MVK.pdf UL - AVK - MYK - MVK.pdf
ISO 9001 iso-9001-615766924c2b5.pdf
ISO 14001 iso-14001-615766ac7f3f4.pdf
ISO 50001 iso-50001-615766c90818f.pdf
REACH reach-klemsan-615766dd49603.pdf
RoHS rohs-klemsan-615766ef25577.pdf
Drawings
Title File
0.0.0.3.04430_MVK 4_Beige.STP 0.0.0.3.04430_MVK 4_Beige.STP
Catalogues
Title File
Klemsan Product Catalogue_TerminalBlocks (English) Klemsan Product Catalogue_TerminalBlocks_EN_Web.pdf
Brochures
Title File
Lima Broschüre (Deutsch) 2025-lima-brochure-de-web-676b492bbcce5.pdf
Lima Brochure (English) 2025-lima-broschure-en-web-676b498b79354.pdf

Fitting Products

Product Package Price
NPP/MVK 2,5-4 BEIGE

End Plate for MVK 2,5-4 BEIGE

 100 Piece
UK 4/2 - YBK 4 / ASK 3

Cross Connectors

 25 Piece
UK 4/3 - YBK 4 / ASK 3

Cross Connectors

 20 Piece
UK 4/4 - YBK 4 / ASK 3

Cross Connectors

 15 Piece
UK 4/10 - YBK 4 / ASK 3

Cross Connectors

 5 Piece
