METECON Insert -E Series , 16P+E, Crimp Termination, Female, Back Entry, 16 A, 400V, 6kV, Size:16B, Contacts:16P, PBT, Connector Material: Brass (Silver Plated), Grey - RAL 7044 Cable Cross Section: 0,5 4.0 mm²
| Description | Value | Unit |
|---|---|---|
| Gender | Female | |
| Size | 16B | |
| Type of electric connection | ||
| Number of poles | 16 | |
| PE Contact | Yes | |
| Rated current | 16 | A |
| Rated voltage | 400 | V |
| Cross section solid-core | Min:0,5, Max:4,0 | mm² |
| Cross section multi-wired | Min:0,5, Max:4,0 | mm² |
| Cross section solid-core AWG | Min:20, Max:12 | mm² |
| Cross section multi-wired AWG | Min:20, Max:12 | mm² |
| Rated voltage acc. to UL | 600 | V |
| Rated impulse voltage | 6 | kV |
| Rated impulse voltage (Signal) | 0 | kV |
| Pollution degree | 3 | |
| Max. Contact resistance | 1 | mOhm |
| Stripping length | Min:7,5, Max:7,5 | mm |
| Min:-40, Max:+120 | °C | |
| Min. number of insertion cycles | 500 | |
| Material of contact | Brass | |
| Material of contact surface | Silver | |
| Inflammability class of insulation material acc. to UL94 (n.a.) | V0 |
| Title | File |
|---|---|

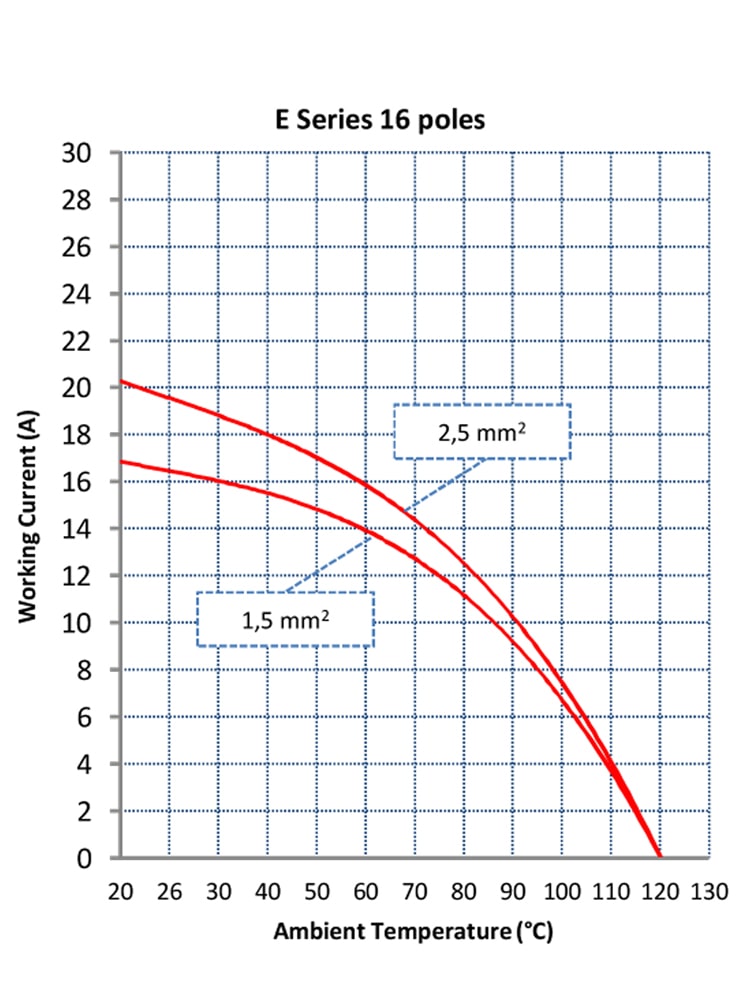

| 290223016_TC_Large[1].jpg | 290223016_TC_Large[1].jpg |

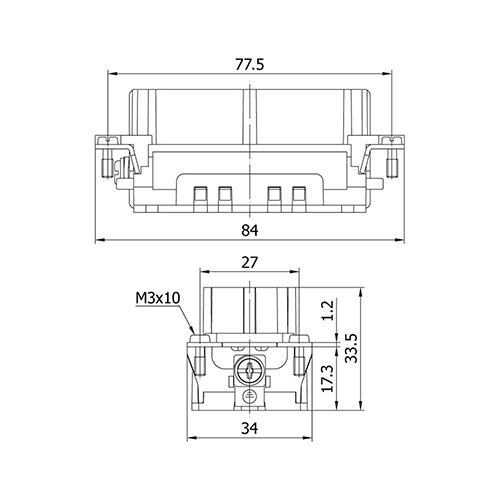

| 290223016[1].jpg | 290223016[1].jpg |
