METECON Insert -A Series , 2P+E, Screw termination, Female, Side Entry, 10 A, 250/400 V, 4 kV, Size:3A, Contacts:2P, Polycarbonate (PC), Connector Material: Brass (Silver Plated), Grey - RAL 7044 Cable Cross Section: 1.0 ... 2.5 mm²
| Description | Value | Unit |
|---|---|---|
| Gender | Female | |
| Size | 3A | |
| Type of electric connection | Screw connection | |
| Number of poles | 2 | |
| PE Contact | Yes | |
| Rated current | 10 | A |
| Rated voltage | 400 | V |
| Rated voltage conductor-earth | 250 | V |
| Cross section solid-core | Min:1,0, Max:2,5 | mm² |
| Cross section multi-wired | Min:1,0, Max:2,5 | mm² |
| Cross section solid-core AWG | Min:18, Max:14 | mm² |
| Cross section multi-wired AWG | Min:18, Max:14 | mm² |
| Rated voltage acc. to UL | 600 | V |
| Rated impulse voltage | 4 | kV |
| Rated impulse voltage (Signal) | 0 | kV |
| Pollution degree | 3 | |
| Max. Contact resistance | 1 | mOhm |
| Stripping length | Min:07, Max:07 | mm |
| Min:-40, Max:+120 | °C | |
| Min. number of insertion cycles | 500 | |
| Material of contact | Brass | |
| Material of contact surface | Silver | |
| Inflammability class of insulation material acc. to UL94 (n.a.) | V0 |
| Title | File |
|---|---|

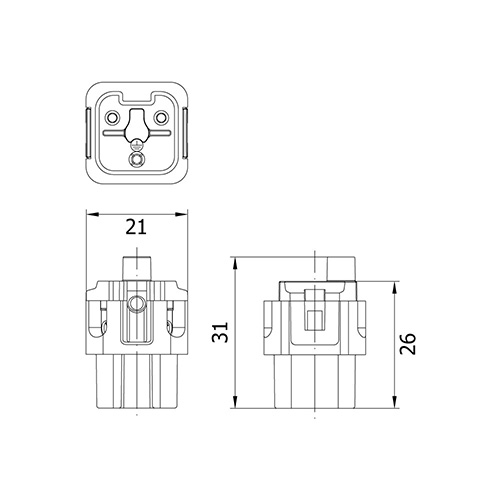

| 29006[1].jpg | 29006[1].jpg |
