Ring Terminals

Product Search
LIRT1-M6-C0350-0350-ST-RD
LIRT1-M6-C0350-0350-ST-RD
LIRT1-M6-C0350-0350-ST-RD
LIRT1-M6-C0350-0350-ST-RD

LIRT1-M6-C0350-0350-ST-RD

Quotation Request

Isolated Ring Terminal, DIN Standard, According to DIN: Yes, Color: Red, Cross Section: Min:35.0, Max:35.0 mm2, Bolt Dimension: M6, Material Ferrule: Copper, Surface Ferrule : Tinned

  • Product ID
    17260
  • ETIM Class
    EC001052
  • Manufacturer
    LIMA
  • Manufacturer AID
    LIRT1-M6-C0350-0350-ST-RD
  • Delivery Time
    25 days

Description

Isolated Ring Terminal, DIN Standard
  • Package Unit
    Piece
  • Quantity per Package
    50
  • Minimum Order Quantity
    1
  • Package Size (mm)
    100(W) x 150(L) x 250(H)
  • Package Weight (gr)
    1250

Technical Data

Description Value Unit
Flange shape Ring shape
According to DIN Yes
Insulation PA
Colour Red
Nominal cross section Min:35.0, Max:35.0 mm²
AWG-range Min:2, Max:2
Bolt dimension (metric) 6
Material Ferrule Copper
Surface Ferrule Tinned

Downloads

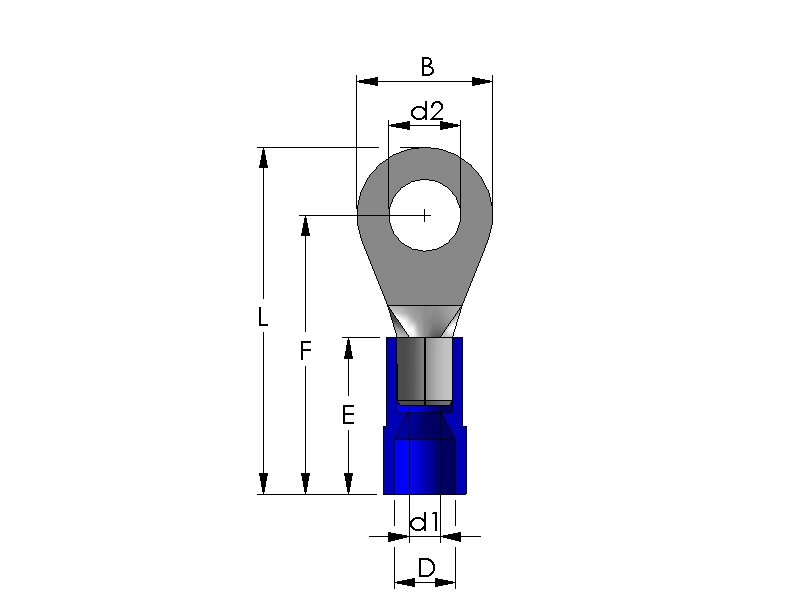

Drawings
Title File
LIRT1_Drawing.JPG LIRT1_Drawing.JPG
Brochures
Title File
Lima Broschüre (Deutsch) 2025-lima-brochure-de-web-676b495795d96.pdf
Lima Brochure (English) 2025-lima-broschure-en-web-676b49d520748.pdf
Presentations
Title File
Lima Produktneuheiten 2024 (DE) 2024-lima-produktheuheiten-667d5e911e3da.pdf
