Description

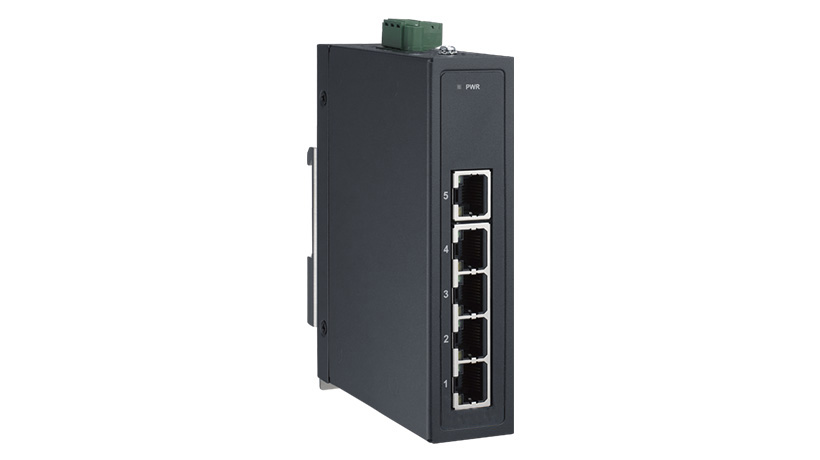

Unmanaged Ethernet Switch, PROFINET
Technical Data
| Description |
Value |
Unit |
| Manageable |
No
|
|
| Total Number of Ports |
5
|
|
| Number of RJ-45 Ports |
5
|
|
| Housing material |
Steel
|
|
| Degree of protection (IP) |
IP30
|
|
| Mounting method |
Wall
|
|
| Mounting method |
Wall
|
|
| Function |
Auto Negotiation
|
|
| Function |
Auto Negotiation
|
|
| Function |
Auto Negotiation
|
|
| Function |
Auto Negotiation
|
|
| Function |
Auto Negotiation
|
|
| Number of ports 10/100 Mbps RJ45 |
5
|
|
| Communication: IEEE Standard |
IEEE 802.3
|
|
| Communication: IEEE Standard |
IEEE 802.3
|
|
| Communication: IEEE Standard |
IEEE 802.3
|
|
| Ethernet: Max. Transmission Speed |
100
|
Mbit/s
|
| Ethernet: Max Transmission Distance |
100
|
m
|
| Ethernet: Nr. of RJ45 Connectors |
5
|
|
| LED Indicators |
PWR
|
|
| LED Indicators |
PWR
|
|
| LED Indicators |
PWR
|
|
| Power Consumption |
2
|
W
|
| Power Input |
Min:12, Max:48
|
V
|
| Width |
30
|
mm
|
| Height |
120
|
mm
|
| Depth |
95
|
mm
|
| Reverse Polarity Protection |
Yes
|
|
| Overload Current Protection |
Yes
|
|
| Operating Temperature |
Min:#WERT!, Max:
|
°C
|
| Storage Temperature |
Min:#WERT!, Max:
|
°C
|
| Operating Humidity (non condensing) |
Min:0,274305556, Max:
|
%
|
| Storage Humidity (non condensing) |
Min:0,274305556, Max:
|
%
|
| Certification (EMI) |
CE
|
|
| Certification (EMI) |
CE
|
|
| Certification (EMS) |
EN 61000-4-8
|
|
| Certification (EMS) |
EN 61000-4-8
|
|
| Certification (EMS) |
EN 61000-4-8
|
|
| Certification (EMS) |
EN 61000-4-8
|
|
| Certification (EMS) |
EN 61000-4-8
|
|
| Certification (EMS) |
EN 61000-4-8
|
|
| Certification (Mechanical) |
IEC 60068-2-27 (Shock)
|
|
| Certification (Mechanical) |
IEC 60068-2-27 (Shock)
|
|
| Certification (Mechanical) |
IEC 60068-2-27 (Shock)
|
|
